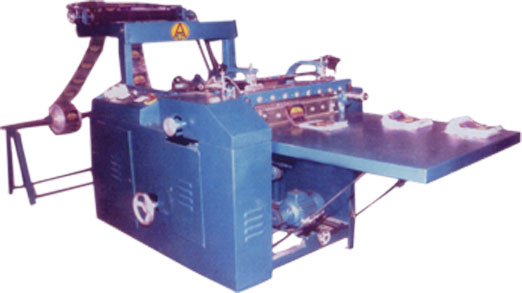

AE-18DES Machine



 AE-18DES :

  • AE-18DES is point cutting & sealing machine.
  • AE-18DES specially for printed bags.
  • Manually operated machine with cluth system.
  • Having gear box technology.
  • Suitable for LLDPE, LDPE, HMHDPE, PP, etc (Films).
  • Static electric elimination.
  • AE-18DES is manually operated machine with one way cluth system for accurate sealing.
  • It Consist of gear box technology for easy & load free working of machine for a long period.
  • All gears, rakes, brakes are made up of graded casting so that it can work long period.

 Technical Specification :

Model
AE-18DES
*Machine width[mm]

645
*Machine length[mm]

1040
*Max. Cutting width[mm]

407
*Max. Cutting length [mm]
763
*Max. Speed(stroke/min.)

60*
*Machine wght.[kg]

425*
*Heater
1kw
*Total connected load
2.5kw

 *FEEDER DRIVE : Microprocess control.

 *MAIN DRIVE : A/C motor with variable & also a/c frequency drive available as per customer need.

 *UN WINDER DRIVE : D/C motot & Drive.

 *NOTE : All model technical specification given in whichmax. cutting length & width can be change according                   to customers requirement.
