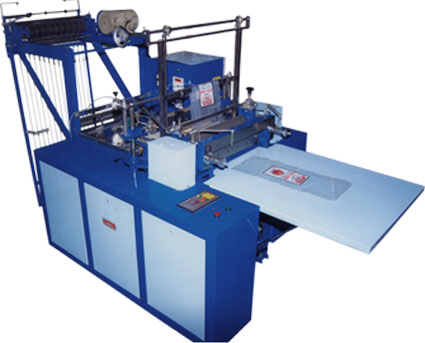

AE-24MIC Machine



 AE-24MIC :

  • AE-24MIC is microprocess control single decker machine.
  • Available both in stepper & servo drive.
  • Microprocess controlled film feeding, no cluth & brake, no Rakes & pinion assembly.
  • AE-24MIC is microprocess control fully computerized machine for accurate and perfect sealing position no variations.
  • Suitable for LDPE, LLDPE, HMHDPE, PP, etc (Films).
  • Static electric elimination.
  • AE-24MIC having latest gear box technology for easy & load free mechanism of machine.
  • Consist of photo camera sensor for printed bags.
  • AE-24MIC single decker specially for prited bags.
  • Touch pad panel board for selecting bag length, speed, counter, etc.
  • Fully computerized.

 Technical Specification :

Model
AE-24MIC [Stepper]
AE-24MIC [Servo]
*Machine width[mm]

788
788
*Machine length[mm]

1040
1040
*Max. Cutting width[mm]

558
558
*Max. Cutting length [mm]
763
763
*Max. Speed(stroke/min.)

135*
185*
*Machine wght.[kg]

496*
499*
*Heater
1.5kw
2kw
*Total connected load
3kw
3.5kw

 *FEEDER DRIVE : Microprocess control.

 *MAIN DRIVE : A/C motor with variable & also a/c frequency drive available as per customer need.

 *UN WINDER DRIVE : D/C motot & Drive.

 *NOTE : All model technical specification given in whichmax. cutting length & width can be change according                   to customers requirement.
