AE-28DES is manually operated cluth system machine

AE-28DES is manually operated cluth system machine

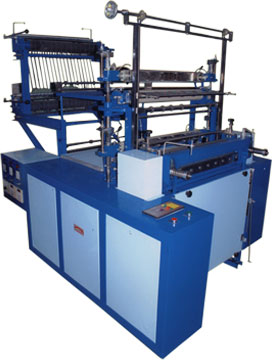

AE-28MIC is a microprocess control double decker machine.

AE-18MIC is microprocess control single decker machine.

AE-24MIC is microprocess control single decker machine.

AE-18DES is point cutting & sealing machine.

AE-32MIC is a microprocess control double decker machine.

Woven Sack Cutting Machine.

Woven Sack Cutting Machine.

Woven Sack Cutting Machine.

Woven Sack Cutting Machine.


AE-32MIC Machine




 AE-32MIC :

  • AE-32MIC is microprocess control double decker machine.
  • Available both in stepper & servoe drive. As per cutomers need.
  • Microprocess control film feeding, no cluth & brake, no Rakes & pinion assembly.
  • Microprocess control computerized machine for accurate & perfect sealing position.
  • Suitable for LLDPE, LDPE, HMHDPE, PP, etc.
  • Static electric elimination.
  • AE-32MIC having latest gear box technology for easy & load free mechanism of machine.
  • Consist of photo camera sensor for printed bags.
  • Touch pad panel board for selecting length, speed, counter, etc.
  • Fully computerized.

 Technical Specification :

Model
AE-32 [Stepper]
AE-32[Servo]
*Machine width[mm]

1003
1003
*Max. Cutting width[mm]

762
762
*Max. Cutting length[mm]

1000
914
*Max. Speed[stroke/min]

120*
170*
*Machine length[mm]

1040
1040
*Machine wgt.[kg]

750*
790*
*Heater

2kw
2.5kw
*Total connected load

4kw
4.5kw

 *FEEDER DRIVE : Microprocess control.

 *MAIN DRIVE : A/C motor with variable & also a/c frequency drive available as per customer need.

 *UN WINDER DRIVE : D/C motot & Drive.

  *NOTE : All model technical specification given in whichmax. cutting length & width can be change according                    to customers requirement.
